Overflow system S9 Prestige



Downward sloping pre-deck system using Ref. 647 measuring 31 x 62.7 cm.



The edge is complemented by matching porcelain stoneware grids. Two models are available: Flex Grid and Compact Grid.

Overflow system S9 Prestige



Downward sloping pre-deck system using Ref. 647 measuring 31 x 62.7 cm.



The edge is complemented by matching porcelain stoneware grids. Two models are available: Flex Grid and Compact Grid.

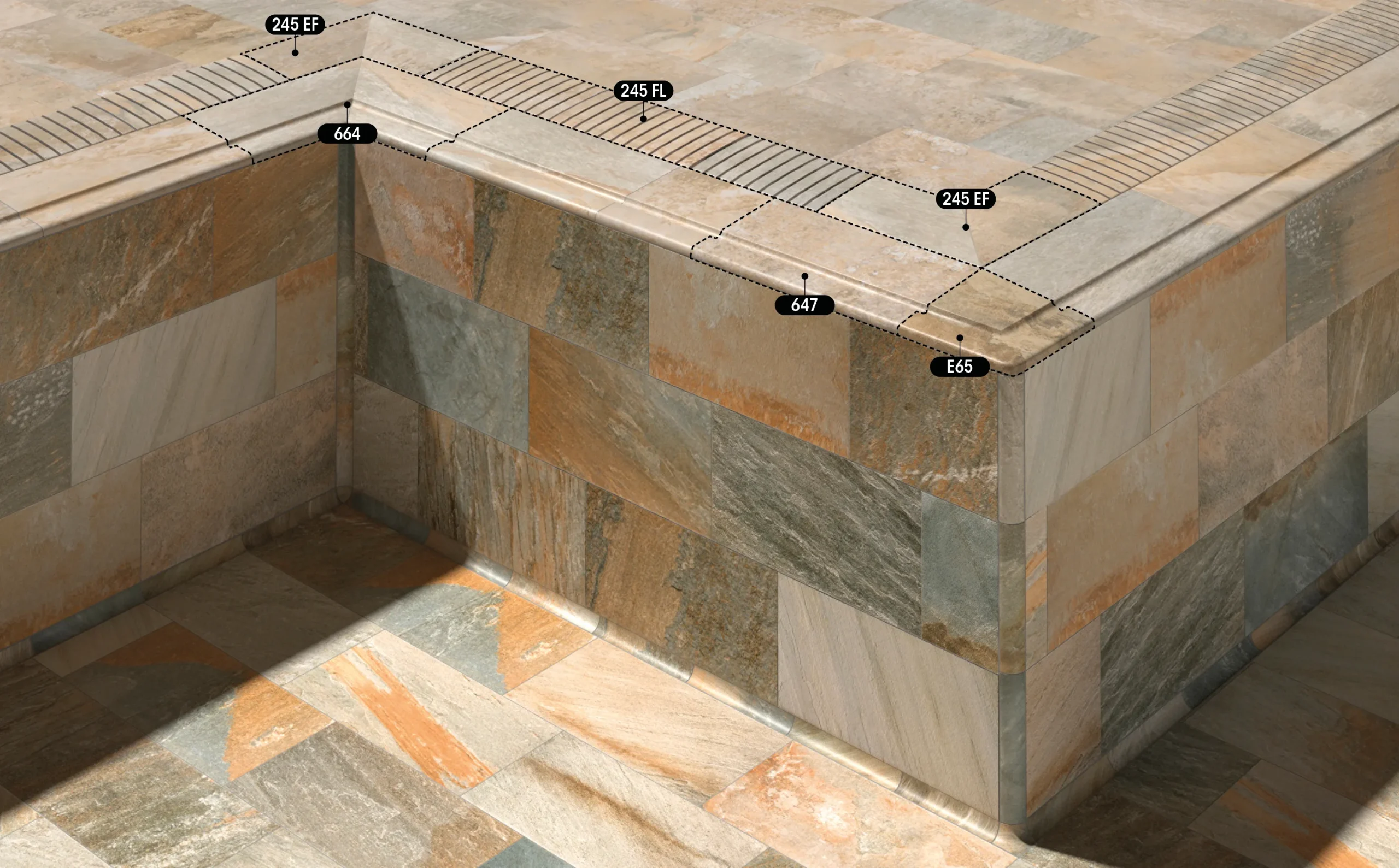

Edge pieces Prestige System

647 Anti-Slip
62,6 x 31 x 2,6

664 Anti-Slip
62,6 x 62,6 x 2,6

E65 Anti-Slip
31 x 31 x 2,6

Porcelain stoneware grids

FLEX

COMPACT

245 FL Anti-Slip
49,5 x 24,5 x 2,2

245 EF Anti-Slip
26,6 x 26,6 x 2,2

245 CM Anti-Slip
62,6 x 24,5 x 2,2

245 EC Anti-Slip
62,6 x 62,6 x 2,2

FLEX

245 FL Anti-Slip
49,5 x 24,5 x 2,2

245 EF Anti-Slip
26,6 x 26,6 x 2,2

COMPACT

245 CM Anti-Slip
62,6 x 24,5 x 2,2

245 EC Anti-Slip
62,6 x 62,6 x 2,2

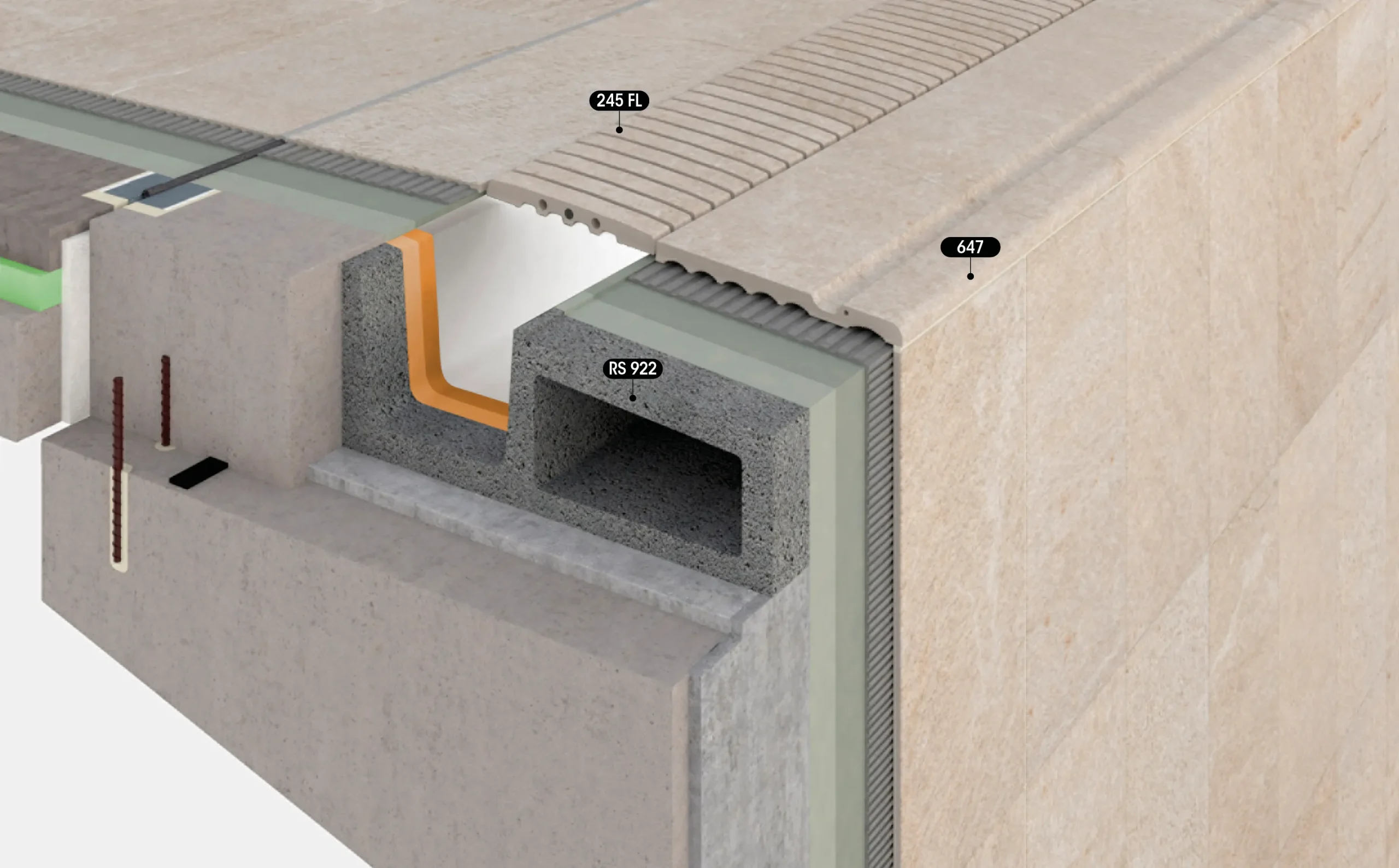

S9 Construction System for the Prestige Deck level Pool System

It consists of a series of concrete blocks that are fully compatible with the ceramic pieces of the Prestige Overflow System. The S9 blocks create the slope and serve as a support for the overflow grate.

Sistema constructivo S9 para el Sistema Desbordante Prestige
